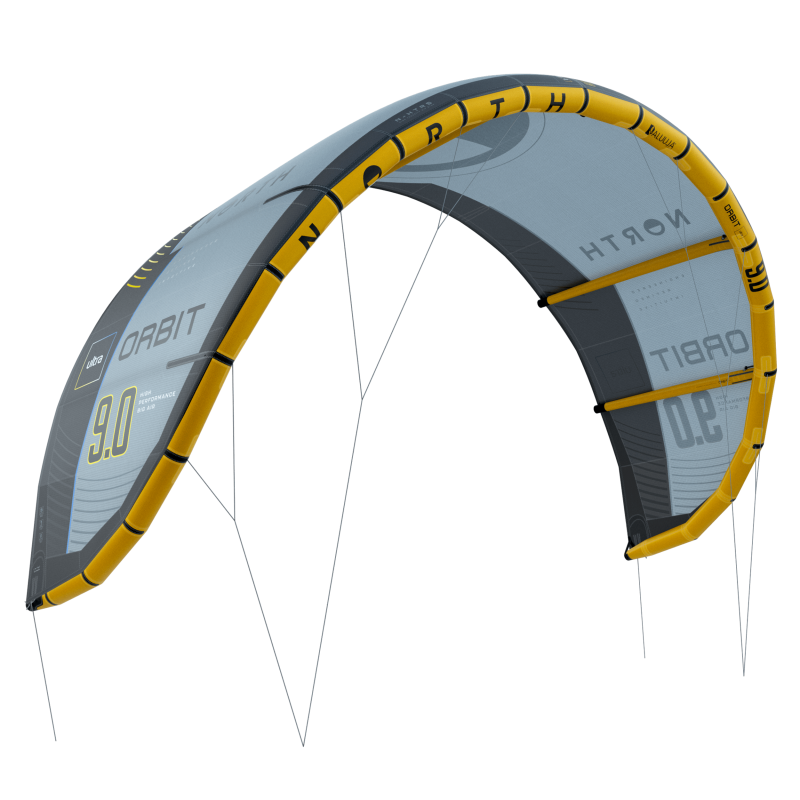

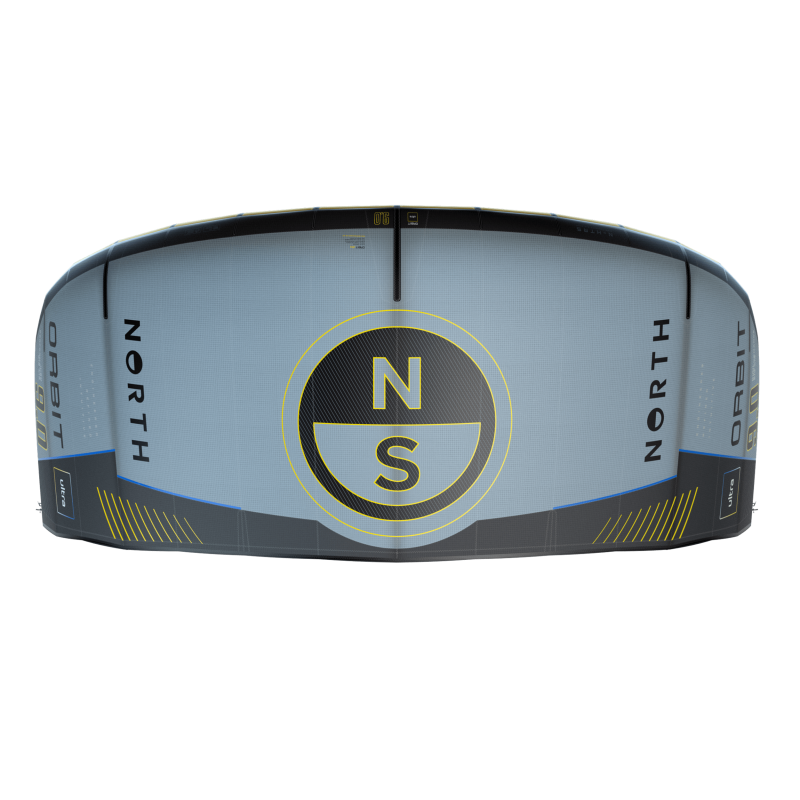

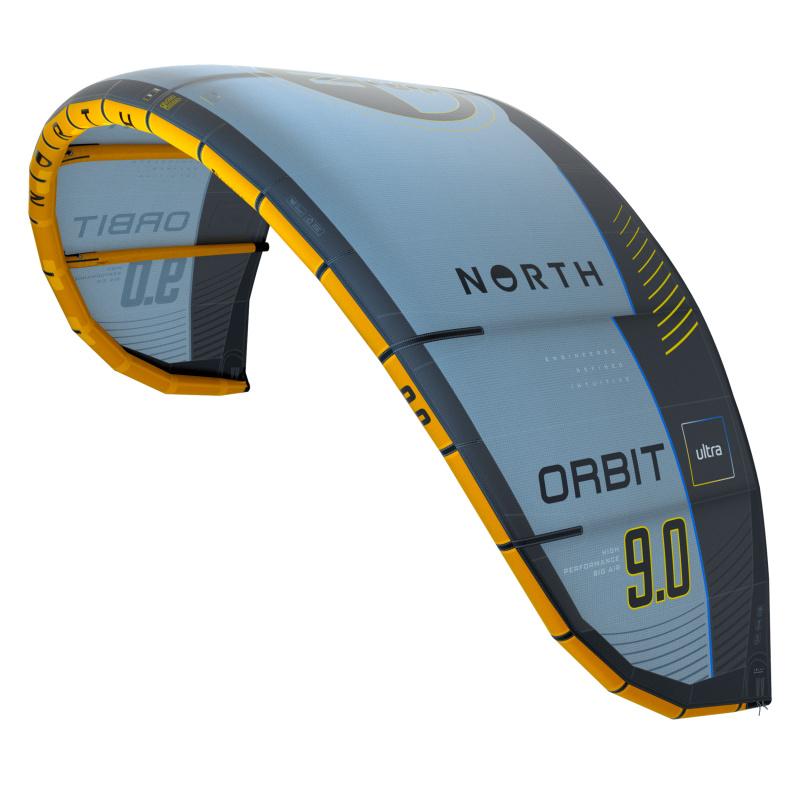

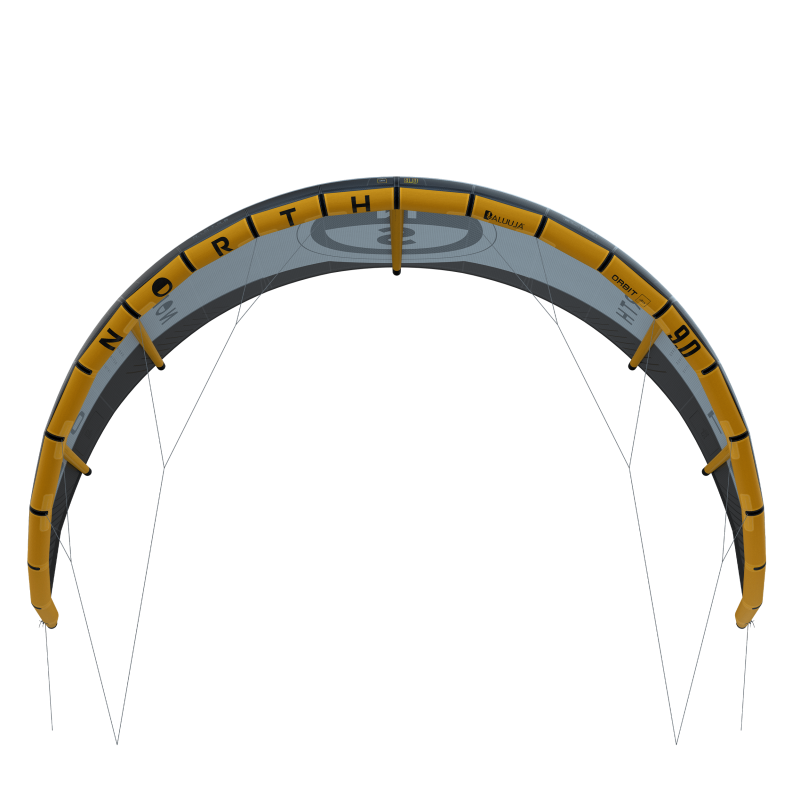

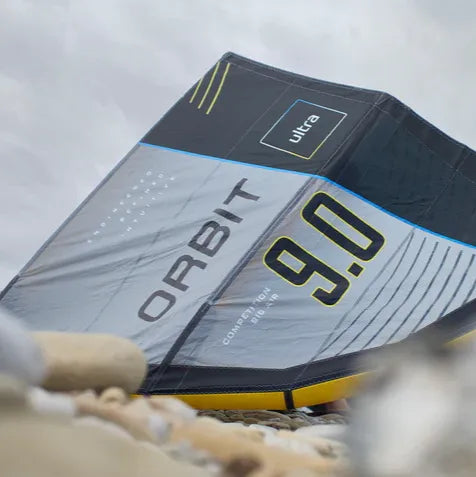

Our fastest, most reactive version of the iconic Orbit is precision-engineered thinner and lighter for extreme boosting and looping in a wider range. The new higher modulus Aluula airframe means we’ve been able to reduce the LE/strut diameter, for a faster, more forward-flying kite with a more direct feel and even greater efficiency.
13-18% lighter airframe
Faster flying smaller LE diameter
Refined weight-saving construction
Stable 5-strut performance with micro strut geometry
Linear core sizes
Pro points light and direct steering impulse options
Response competition bridling for faster control
Refined HyperFlow strut isolation
Aerodynamic profile transition panels
Segmented-curve arc design
FEATURES
1/13

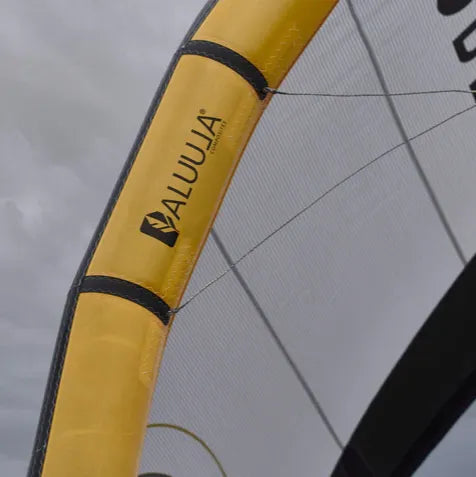

New Aluula Gold Airframe
A UV-resistant outer film is sustainably bonded to the ultra-strong high-modulus ALUULA Core material. The resulting lamination produces a high-performance non-permeable fabric with an unparalleled strength-to-weight ratio. ALUULA Gold is 40% lighter than N-Max2, 15x stronger than Dacron when new, and more than 35x stronger after the same UV exposure. Its extremely high modulus gives extra rigidity to inflated structures.
2/13
Durable weight-saving construction
Like the Pro, the Orbit Ultra has many weight-saving features for lighter more agile handling. We’ve reduced the overall volume on the leading edge and struts by 12L between the Orbit and the Ultra. We’ve stripped back the scuff guards, used the lightest bladders, reduced the HyperFlow hardware and steering impulse attachment points. The Ultra canopy is constructed using a triple ripstop N-HTRS polyester yarn canopy material for high tear strength and longevity.
3/13
Fully Engineered bridles
We’ve retained the Orbit’s controlled response and fast steering, while giving the kite a more energetic feel with increased depower. Working closely with our pro team riders to put the kite through hardcore testing in a lot of wind enabled us to further improve the stability, the feedback, and the steering behavior, and to give the kite a lighter, more responsive feel.
4/13
Aerodynamic profile transition panels
There’s now only one panel segment instead of two, this reduces the number of seams, and helps to smooth out the profile entry, ensuring a precise lateral profile shape is maintained as close to the leading edge as possible and creating a smooth transition from the segmented leading edge to the curved canopy. The new panels reduce inconsistencies in the profile, resulting in a smoother, more efficient kite, with more aerodynamic airflow and less turbulence. In the smaller sizes you’ll notice better hangtime and a faster/tighter turning radius. In the bigger sizes the kite is more lively and reactive with increased low end.
5/13
Lightweight bladders in all sizes
The lighter the kite, the faster the steering, the more lift it creates and the higher you jump. Bladders make up a bigger weight percentage than any other material used in a kite, so for 2024 we’ve introduced 17% lighter weight bladder material in all sizes to help the kite feel even lighter and more responsive in all conditions. This additional weight reduction improves the low-end capabilities and helps the kite fly more efficiently. It also improves the overall static balance of the wing by reducing weight in the front of the kite.
6/13
High Aspect ratio design
For 2024, we’ve lowered the aspect ratio in the smaller sizes for more hangtime. They have a better catch and loft, more hangtime and you always know where the kite sits in the sky.
7/13

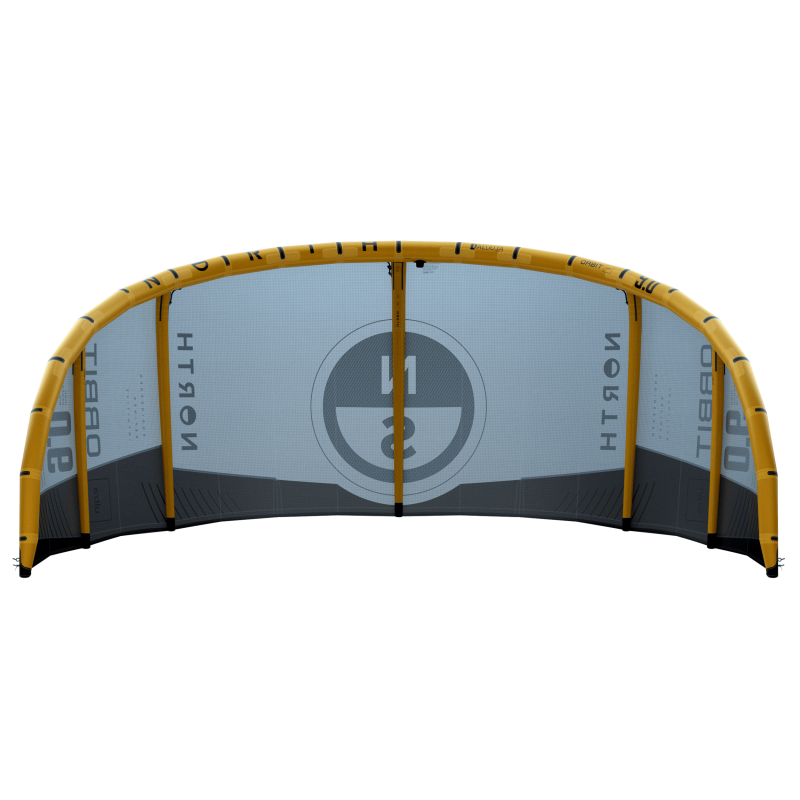

stable 5-Strutt performance
When you’re chasing a storm, the Orbit provides incredible top-end control. The five-strut design gives it an incredible amount of stability and wind range, and you have a lot more control over the canopy movement at low attack angles. The Orbit has the widest wind range of all our kites. The fixed, no-pulley bridle is a little bit longer, and combined with its placement on the kite gives us a very stable platform in all conditions.
8/13
Highest Quality no pulley bridle lines
Our high-quality spliced, pre-stretched bridle lines are pre-loaded and measured before cutting to improve accuracy and consistency. This results in reduced shrinkage, reduced elongation and improved longevity. Removing ALL pulleys from the bridle improves safety and gives the kite direct and precise handling.
9/13
4x Bar Pressure options for precise steering and depower
Setting A is ideal for lighter riders, and for cruising in lighter winds, when you don’t load up the kite fully. Setting B is the factory setting your kite will be delivered with. Use this setting for light bar pressure and a slightly more direct feel in the steering. Setting C gives a Medium bar pressure and firmer, more direct steering and shorter depower travel. It gives the kite a sportier feel but requires a little more force to control the steering. Setting D is our megaloop setting – this gives the heaviest bar pressure or most direct steering impulse. It is the most stable choice in high winds and is recommended for stronger, heavier riders.
10/13
High Performance N-HTRS canopy
All our kites are manufactured using high tenacity polyester yarn canopy material for lightness, high tear strength, zero porosity and longevity.
11/13
Duralite seam protection
Thin foam padding is inserted underneath to form a lightweight durable buffer which lifts the kite slightly off rough surfaces and protects the stitching along the struts and leading edge seams. Markcloth seam protectors on the canopy also help to protect the stitching.
12/13
HyperFlow rapid single-point inflation
Ergonomic high volume single point inflation system with large diameter hose for rapid inflation and deflation. The cap and valve base geometry has been optimised for more comfortable opening and closing in colder conditions (when your fingers are freezing). The bayonet style main inflation valve is compatible with most pumps. No adapter needed.
13/13
Recycled PET kite bag
Recycled materials are also used to make our own custom webbing. It’s generously sized to fit your packed-down kite easily, with corrosion-free zippers, stash pockets and air-vents in the bottom and sides of the bag. North kite bags also have an external Control System pocket, Kite Pump attachment and ergonomic shoulder and chest straps.
"The lightest, fastest, sharpest. The kite that unlocks new possibilities." - Jett Bradshaw BIG AIR PRO
SIZE GUIDE
ORBIT ULTRA 2025 SIZE
5.9
6.6
7.3
8.1
9
10
11
12
WIND RANGE (knots)
21+
20-38
18-37
16-36
14-33
12-31
11-29
10-27
*Recommended for an average-sized kiter riding a twintip with intermediate to advanced skills.
Lighter rider/beginner? Take 5 knots off the high end of the range
Foiling? Drop a few sizes to suit the conditions
PERFORMANCE
